MISUNG LED Model
|
|
Model | LED Colour(Kelvin) | Voltage | Power | CRI | LED Chip | SMT | Warranty |

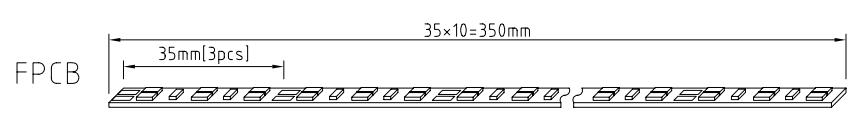

F12-CCT-350-30-0.15 | CCT 3000K--6500K | 12V | 0.15W/particle | 80% | TAIWAN EPASTAR-2835 | CHINA | 2 YEARS |
MISUNG LED Model
|
|
Model | LED Colour(Kelvin) | Voltage | Power | CRI | LED Chip | SMT | Warranty |

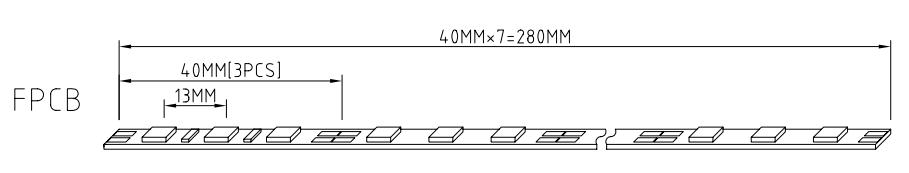

F12-5630-280-18-0.25 | 2700 3000 3500 4100 5300 6500 | 12V | 0.25W/particle | Above 80% | Seoul Semiconductor 5630 | Korean | 3 YEARS |
MISUNG LED Model
 |  |
Model | LED Colour(Kelvin) | Voltage | Power | CRI | LED Chip | SMT | Warranty |

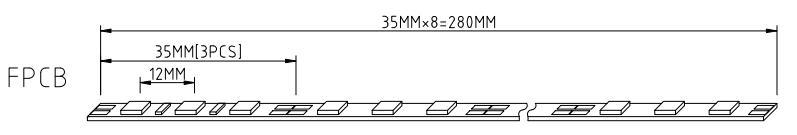

F12-2835-280-24-0.15 | 2700 3000 3500 4100 5300 6500 | 12V | 0.15W/particle | Above 80% | TAIWAN EPASTAR-2835 | CHINA | 2 YEARS |
MISUNG LED Model
 |  |
Model | LED Colour(Kelvin) | Voltage | Power | CRI | LED Chip | SMT | Warranty |

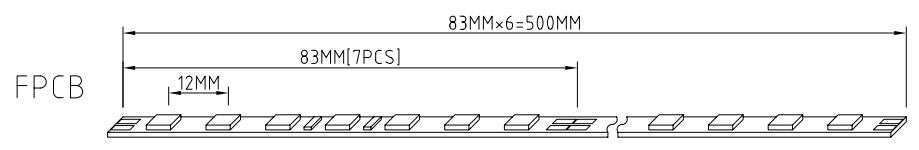

F24-2835-500-42-0.15 | 2700 3000 3500 4100 5300 6500 | 24V | 0.15W/particle | Above 80% | TAIWAN EPASTAR-2835 | CHINA | 2 YEARS |
MISUNG LED Model
|  |
Model | LED Colour(Kelvin) | Voltage | Power | CRI | LED Chip | SMT | Warranty |

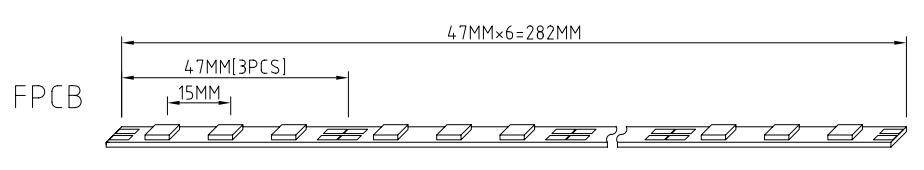

F12-2835-280-21-0.15 | 2700 3000 3500 4100 5300 6500 | 12V | 0.15W/particle | 90% | TAIWAN EPASTAR-2835 | CHINA | 2 YEARS |
The new LED Model from Misung has been engineered in color consistency, quality and product life to match the Led Panel high standards allowing lighting designers to combine the benefits of both without having a color conflict.
