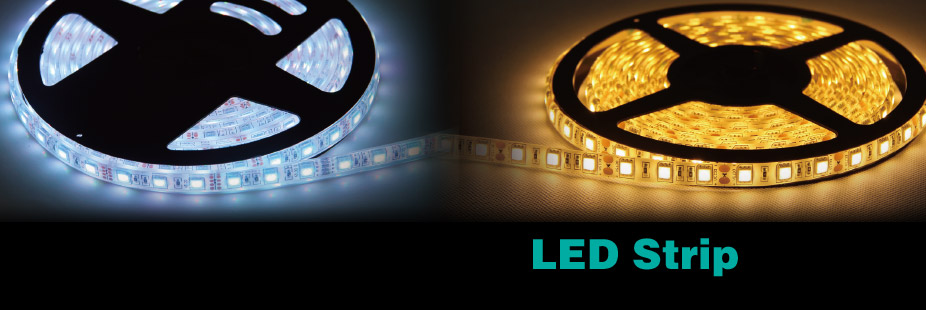

LED Strip
Product Detail

Specifications


LED Light Panel (LLS12)-LED Light Tape


Electrical

Input Voltage

12 Volt DC

power Consumption

24W±1.2

Wire Size

20 AWG 2wire

Connector

Free leads

Expected Lifespan

50,000hrs


Physical

Color Temperature

3000K 4100K 5300K

Operating Temperature

-30℃(-22°F)to+40℃(+104°F)

Environment

Dry location only(Standard)

Number of LED

300 per 5m(16ft)

Gap between LEDs

50mm

Maximum Length

5m(16ft)

Lumens(per 5m)

Approx.2160 Lumen

Part Number

LLS12-PC

Color Temperature

Pure/Cool White

Approx.Luminous Flux(lm)

5300lm

Dimensions(L×W×H)

5000mm×10mm×2.2mm

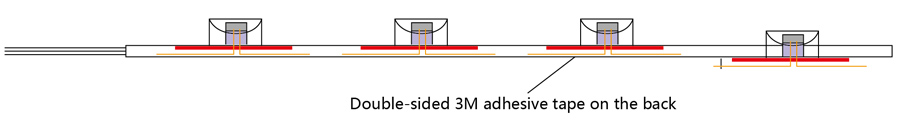

Lumistrip side view

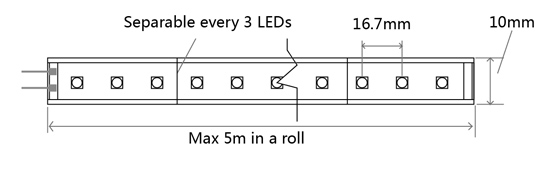

                             Features & Benefits                                                                     Lumistrip 2D Drawing


5M(16FT)IN A ROLL

EASY INSTALLATION

SEPARABLE EVERY 3 LEDS

LONG LIFESPAN

CE&ROHS COMPLIANT

SUPERIOR CONSISTENT LIGHT QUALITY

MATCHES LUMISHEET KELVIN COLORS

ADVANCED 3-YEAR WARRANTY





*
*
*
