LED Panel
Product Detail

LED Panel


12V

2700K 3000K 3500K 4100K 5300K 6500K 10000K

24V


LED Light Panel (Specification by Size)

Size(mm)

LED Strip

Average Surface Brightness(Lx)

Power Comsumption(W)

150*150

1 sides

5000

1

300*300

1 sides

3500

2.8

300*300

2 sides

6000

5.5

600*600

2 sides

3000

11.5

900*900

2 sides

2000

18

1200*1200

2 sides

1500

25

2400*1200

2 sides

1500

48


LED Light Panel (Specification by Size)

Size(mm)

LED Strip

Average Surface Brightness(Lx)

Power Comsumption(W)

¢150

all around

15000

4.6

¢300

all around

10000

9.6

¢600

all around

5000

20

¢900

all around

4000

29

¢1200

all around

3000

38


Wire Out


wire out.pdf

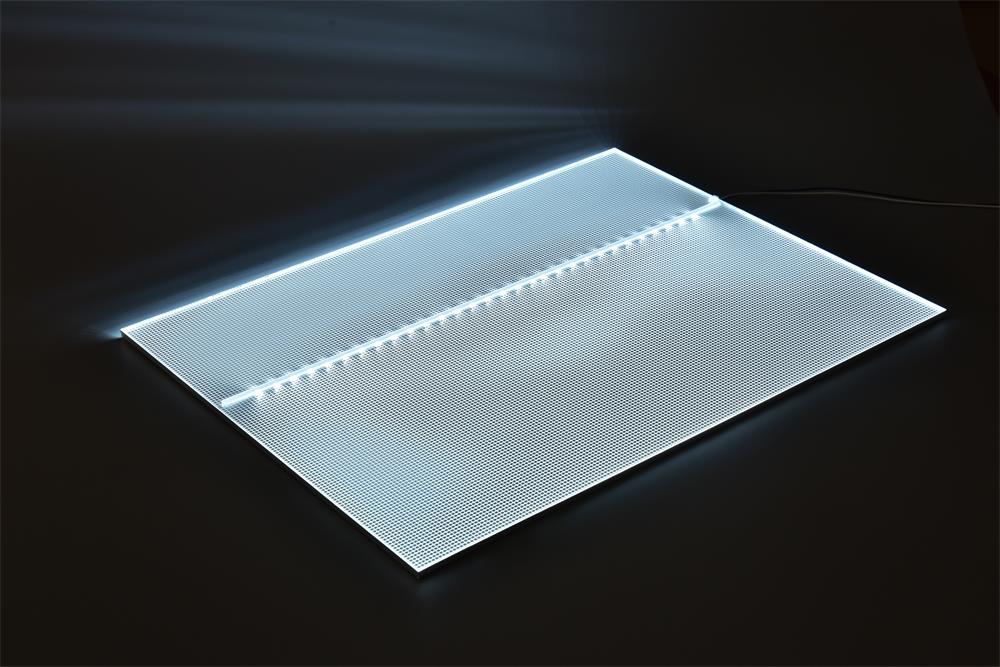

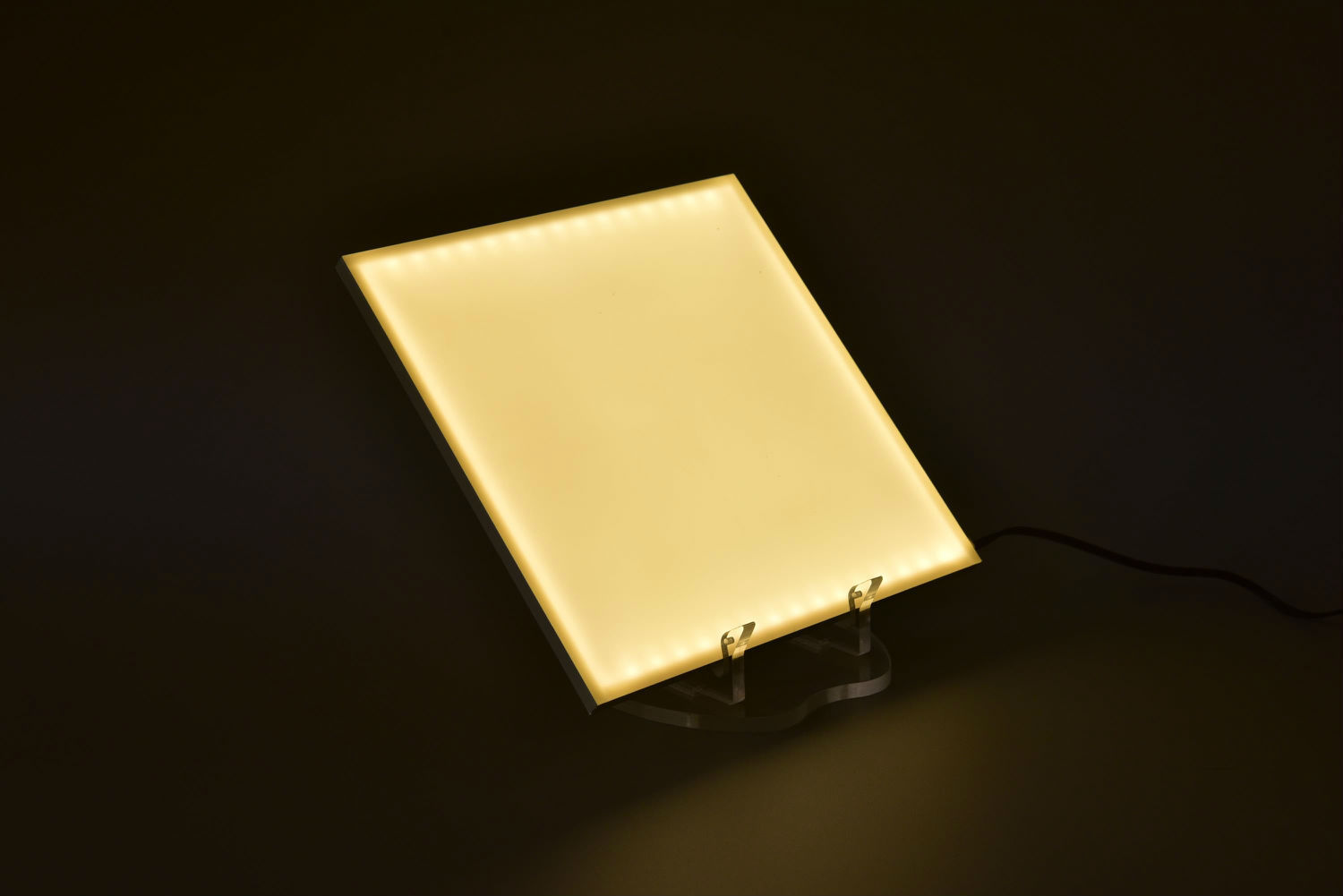

Regular Led Light Panel


Regular Led Light Panel is designed to emit a bright, even output of light across the entire surface of the panel. Unlike traditional light panels, which have the light source mounted on the exterior of the LGP (Light Guide Plate), Misung Led Light Panel integrates high brightness LEDs and heat sink into our exclusive 3D V-cutting LGP which makes it possible to produce "frameless", rectangular or special shaped LED light panels for various application needs.

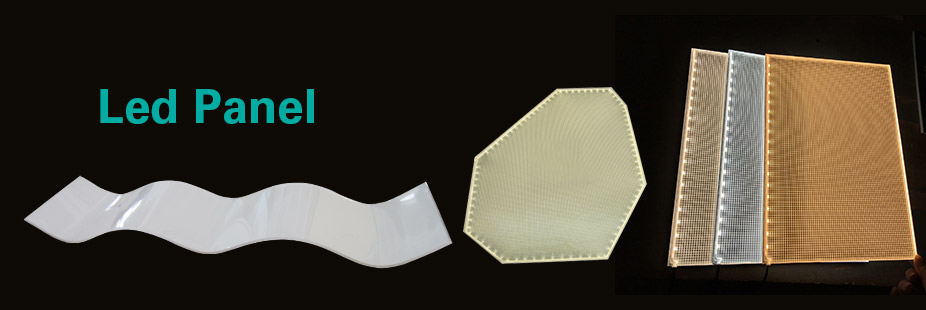

Special-Shaped LED Panel


Custom shapes, letters, logos and cut-outs are all easy to achieve with the LED light panels. Our precise cutting CNC machines are able to work to your exact specifications, providing creative solutions to your lighting, millwork, signage and display projects.


Thermal-Forming LED Panel


Add bends, twists, and turns to your lighting with new Thermoform led light panel. The customization possibilities are endless. Learn More


Waterproof LED Panel


Water Water-Proof Led Panel is widely applied outside advertising display and high humidity environment display.

*
*
*
